Horizontal Miter Bandsaws

Horizontal Miter Bandsaw

Horizontal Miter Bandsaws


Here are some PDF brochures to help you select the exact one that you need:

Horizontal Miter Bandsaw Product Line

Our Main Models

12" (305 mm) Semi Automatic Wet Cutting Horizontal Miter Bandsaw

Model MS1218VS

12 inch (305 mm) Semi Automatic Miter Bandsaw
Standard Features:
  • 0°-45° Miter cutting, make angle cuts without swinging material to be cut
  • 2 Hp (1.5kw) main drive with magnetic starter and overload protection
  • Variable speed drive
  • 230/460v 60 cycle 3 phase electricals
  • Recirculating coolant system with application through both guides
  • Solid carbide blade guides with rollers
  • Quick position vise
  • Automatic shut-off at end of cut
  • Totally enclosed transmission
  • Blade cleaning brush
  • Cast iron bed
  • 1" (254mm) wide blade
  • Stock stop
  • Easily adjusted head feed with power lift
  • Two (2) year limited warranty
  • Model PDF Brochure
12 inch semi automatic miter bandsaw

13" (330 mm) Semi Automatic Horizontal Miter Bandsaw

Model MS1318SA

Standard Features:
  • Advanced hydraulic system provides dependable power for powered clamping and raising the saw head at end of cut
  • Full stroke machine vise for tight clamping of any material from operator's panel
  • Swivel sawhead allows the operator to accurately pivot head for angle cuts from 0°, for a 90° cut, to 60°
  • Carbide blade guides provide excellent stability for the saw blade
  • Variable blade speed
  • Power chip brush removes chips from the blade extending blade life
  • Integrated coolant system
  • Cast iron moveable guide arms provide rigidity and stability for an accurate cut
  • Flushing hose
  • Adjustable work stop
  • Tool box with tools
  • Manual & parts list
  • Two (2) year limited warranty
  • Model PDF Brochure
13 inch (330 mm) Semi Automatic Miter Bandsaw

13" (330 mm) Fully Automatic NC Horizontal Miter Bandsaw

Model MS1319NC

Standard Features:
  • The swivel sawhead allows cutting at any angle between 90° (straight cut) and 45° (miter cut)
  • Precision pivot system facilitates easy and accurate adjustment for angle cuts
  • Inverter controlled infinitely variable speed
  • Carbide blade guides with roller bearings
  • Two additional guides to support the blade from the top
  • Automatic hydraulic blade tensioning
  • Power driven blade brushes
  • Integral coolant system
  • Smart NC-100 technology programmable up to 100 different jobs
  • Easy recal and execution of stored parts
  • Automatic shutoff after preset number of cuts or when out of stock
  • 5.7" HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
  • Automatic kerf loss compensation & computer controlled multiple indexing
  • Precision feed pressure & feed rate
  • Automatic height setting feature
  • Hydraulic front and rear vises
  • Cast iron vises with replaceable hardened wear plates
  • Computer controlled multiple indexing
  • Discharge table with built-in coolant return
  • Blade slippage or breakage detection
  • Additional flushing hose
  • Bi-metal saw blade
  • Built in work light
  • Tool box, leveling pads, and an additional wire brush
  • Operation & parts manual
  • Two (2) year limited warranty
  • Model PDF Brochure
13 inch (330 mm) Semi Automatic Miter Bandsaw

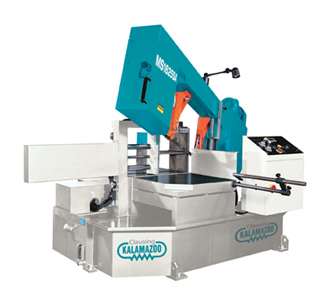

16.5" (420mm) Semi-Automatic Hyd Swivel Head Horizontal Miter Bandsaw

Model MS1625SA

Standard Features:
  • The swivel sawhead allows cutting at any angle between 90° (straight cut) and 45° (miter cut)
  • Precision pivot system facilitates easy and accurate adjustment for angle cuts
  • Inverter controlled infinitely variable speed
  • Carbide blade guides with roller bearings
  • Two additional guides to support the blade from the top
  • Automatic hydraulic blade tensioning
  • Power driven blade brushes
  • Integral coolant system
  • Smart NC-100 technology programmable up to 100 different jobs
  • Easy recal and execution of stored parts
  • Automatic shutoff after preset number of cuts or when out of stock
  • 5.7" HMI touch screen incorporating readout on blade speed, blade life, feed vise position and error code display for self-diagnostics
  • Automatic kerf loss compensation & computer controlled multiple indexing
  • Precision feed pressure & feed rate
  • Automatic height setting feature
  • Hydraulic front and rear vises
  • Cast iron vises with replaceable hardened wear plates
  • Computer controlled multiple indexing
  • Discharge table with built-in coolant return
  • Blade slippage or breakage detection
  • Additional flushing hose
  • Bi-metal saw blade
  • Built in work light
  • Tool box, leveling pads, and an additional wire brush
  • Operation & parts manual
  • Two (2) year limited warranty
  • Model PDF Brochure
16.5 inch (420mm) Semi-Automatic Hyd Swivel Head

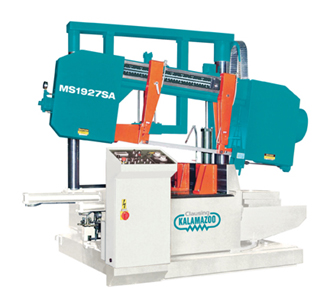

19.7" (500mm) Semi-Automatic Hyd Swivel Head Twin Column Horizontal Miter Bandsaw

Model MS1927SA

Standard Features:
  • Swivel sawhead mitering from 90° to 60°
  • Rigid, oversized round columns precision ground to ensure smooth and consistent feed rate
  • 7.5 degree blade cant for longer blade life
  • 45 degree backward swivel with automatic angle lock-in
  • Specially designed gearbox for smooth and powerful cutting
  • Heavy duty inverter blade drive system
  • Carbide blade guides
  • Two additional guide bearings for extra support of the blade
  • Automatic hydraulic blade tensioning device
  • Integral coolant system
  • Synchronized power driven blade brush
  • Independent control station
  • Infinitely variable blade speed control
  • Precision feed pressure & feed rate dual valve system
  • "Last cut" or "keep on" selector switch
  • Work height selector
  • Extremely heavy-duty cast iron machines vises ensuring tight clamping
  • 2 sets of full stroke cylinder vises
  • Shadow light projection for precise length measurement
  • Proximity switch for sensing blade slippage or breakage
  • Electrical and hydraulic safety interlock
  • Conduits protection measure
  • "Alert Orange" safety measure
  • Blade "clip" device for easy blade change
  • Bi-metal saw blade
  • Tool box, leveling pads, and an additional wire brush
  • Operation & parts manual
  • Two (2) year limited warranty
  • Model PDF Brochure
19.7 inch (420mm) Semi-Automatic Hyd Swivel Head

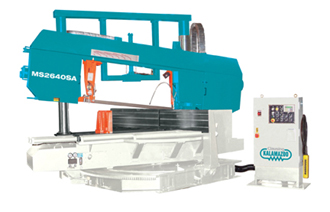

26" (660mm) Semi-Automatic Hyd Swivel Head Twin Column Horizontal Miter Bandsaw

Model MS2640SA

Standard Features:
  • Swivel sawhead mitering from 90° to 60°
  • Rigid, oversized round columns precision ground to ensure smooth and consistent feed rate
  • 7.5 degree blade cant for longer blade life
  • 45 degree backward swivel with automatic angle lock-in
  • Specially designed gearbox for smooth and powerful cutting
  • Heavy duty inverter blade drive system
  • Carbide blade guides
  • Two additional guide bearings for extra support of the blade
  • Automatic hydraulic blade tensioning device
  • Integral coolant system
  • Synchronized power driven blade brush
  • Independent control station
  • Infinitely variable blade speed control
  • Precision feed pressure & feed rate dual valve system
  • "Last cut" or "keep on" selector switch
  • Work height selector
  • Extremely heavy-duty cast iron machines vises ensuring tight clamping
  • 2 sets of full stroke cylinder vises
  • Shadow light projection for precise length measurement
  • Proximity switch for sensing blade slippage or breakage
  • Electrical and hydraulic safety interlock
  • Conduits protection measure
  • "Alert Orange" safety measure
  • Blade "clip" device for easy blade change
  • Bi-metal saw blade
  • Tool box, leveling pads, and an additional wire brush
  • Operation & parts manual
  • Two (2) year limited warranty
  • Model PDF Brochure
26 inch (600mm) Semi-Automatic Hyd Swivel Head

33.5" (850mm) Semi-Automatic Hyd Swivel Head Twin Column Horizontal Miter Bandsaw

Model MS3340SA

Standard Features:
  • Swivel sawhead mitering from 90° to 60°
  • Rigid, oversized round columns precision ground to ensure smooth and consistent feed rate
  • 7.5 degree blade cant for longer blade life
  • 45 degree backward swivel with automatic angle lock-in
  • Specially designed gearbox for smooth and powerful cutting
  • Heavy duty inverter blade drive system
  • Carbide blade guides
  • Two additional guide bearings for extra support of the blade
  • Automatic hydraulic blade tensioning device
  • Integral coolant system
  • Synchronized power driven blade brush
  • Independent control station
  • Infinitely variable blade speed control
  • Precision feed pressure & feed rate dual valve system
  • "Last cut" or "keep on" selector switch
  • Work height selector
  • Extremely heavy-duty cast iron machines vises ensuring tight clamping
  • 2 sets of full stroke cylinder vises
  • Shadow light projection for precise length measurement
  • Proximity switch for sensing blade slippage or breakage
  • Electrical and hydraulic safety interlock
  • Conduits protection measure
  • "Alert Orange" safety measure
  • Blade "clip" device for easy blade change
  • Bi-metal saw blade
  • Tool box, leveling pads, and an additional wire brush
  • Operation & parts manual
  • Two (2) year limited warranty
  • Model PDF Brochure
33.5 Semi-Automatic Hyd Swivel Head
